The total number of the conductor in stranded cable is given by N = 3x2 − 3x + 1 Where x = no. of layer For layer 1 N1 = 3(1)2 − 3(1) + 1 N1 = 1 For layer 2 N2 = 3(2)2 − 3(2) + 1 N2 = 7 In layer 2 no. of conductor = N2 − N1 = 7 − 1 = 6 For layer 3 N3 = 3(3)2 − 3(3) + 1 N3 = 19 In layer 3 no. of conductor = N3 − N2 = 19 − 7 = 12
Capacitor start and capacitor run motor: Two capacitors are used for starting, but one of them is cut out when speed reaches 70 percent of the synchronous speed. The capacitor start-and-run motor starts with a high value and a low-value capacitor connected in parallel with each other but in series with the starting winding. This provides a very high starting torque. The centrifugal switch disconnects the high-value capacitor at 80 percent speed, but the lower value capacitor remains in the circuit.

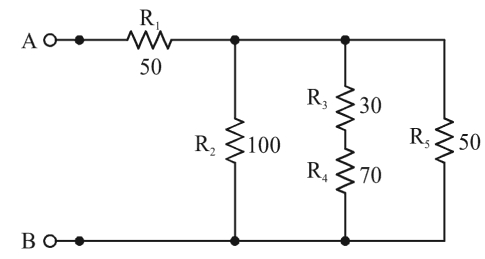

Total resistance in the given circuit R = (250 + 250)MΩ = 500 MΩ Current I = V/R = 24/(500 × 103) Now the Voltage in the voltmeter = \dfrac{{24}}{{500 \times {{10}^3}}} \times 250 \times {10^3} V = 12 V
Galvanized steel conductors do not corrode, and possess high resistance. Hence such Wires are used in telecommunications circuits, earth wires, guard wire, stray wire, etc.
Given Data Voltage Va = 200 v Armature Resistance Ra = 0.5Ω Armature Current Ia = 20 A Induced EMF = Ea = ? The Induced EMF of a DC machine working as a Motor is Ea = Va − IaRa Ea = 200 − 20 × 0.5 Ea = 190 V
Admittance (Y) is the reciprocal of the impedance of a circuit. Admittance of an AC circuit is analogous to the conductance of a DC circuit. The unit of Admittance is Simen or MHO Admittance = 1/Z simen Y = Conductance ± J Susceptance Or the Admittance can be written as Y = (G ± J B) Simen Now comparing the above equation by the given equation in the question i.e Y= a + jb ∴ a = G = Conductance
