Electric Circuits A 35 V source is connected to a series circuit of 600 Ω and R as shown. If a voltmeter of internal resistance 1.2 kΩ is connected across 600 Ω resistor, it reads 5 V. The value of R is 3.6 k Ω. 1.2 k Ω. 7.2 k Ω. 2.4 k Ω. 3.6 k Ω. 1.2 k Ω. 7.2 k Ω. 2.4 k Ω. ANSWER DOWNLOAD EXAMIANS APP
Electric Circuits A certain network consists of large number of ideal linear resistances, one of which is designated as R and two constant ideal source. The power consumed by R is P1 when only the first source is active and P2 when only second source is active. In both sources are active simultaneously then the power consumed by R is √P1 ± √P2. (P1 ± P2 )2. P1 ± P2 . (√P1 ± √P2)2. √P1 ± √P2. (P1 ± P2 )2. P1 ± P2 . (√P1 ± √P2)2. ANSWER DOWNLOAD EXAMIANS APP

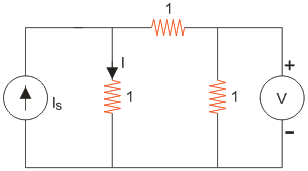

Electric Circuits In the circuit given, I = 1 A for Is = 0. What is the value of I for Is = 2 A ? 2 A. 1 A. 3 A. 4 A. 2 A. 1 A. 3 A. 4 A. ANSWER DOWNLOAD EXAMIANS APP
Electric Circuits In the circuit shown below, what is the voltage across 5 Ω resistor? None of them 34.4 V. -27.4 V. -28.4 V. None of them 34.4 V. -27.4 V. -28.4 V. ANSWER DOWNLOAD EXAMIANS APP
Electric Circuits For the circuit shown in the given figure the current I is given by 3 A. 1 A. 2 A. 4 A. 3 A. 1 A. 2 A. 4 A. ANSWER DOWNLOAD EXAMIANS APP
